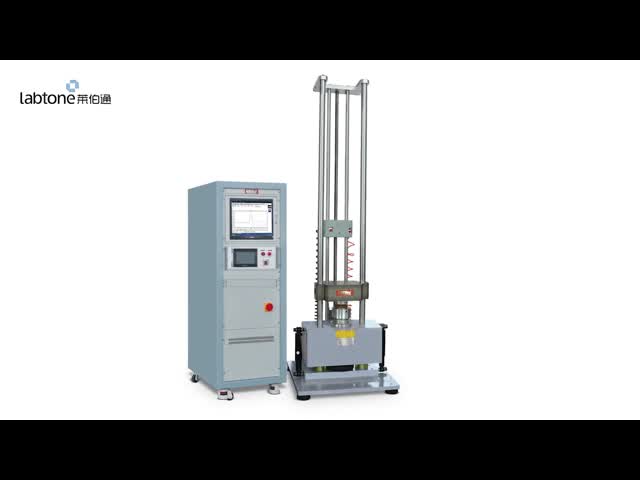

600kg Shock Test System For New Energy Battery Pack Half Sine Wave 50g, 11ms

Product description

Shock or bump test mainly simulate the impact effects of product and its components encountered in usage and transit process. Through standard and high-reproducibility instant energy exchange, you can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. Shock tester is one of destructive experiments, and do destructive test on the product to evaluate the product reliability and monitor the consistency of production line.

Applications

· Fragility test of products.

· Shock standard test of products.

· Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.

· Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.

· Free drop equivalent test packaged freights.

Shock testing System Block Diagram

Shock testing systems Specifications

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table size (cm)		40*40	50*60	70*80	100*100	120*120	150*150	200*200
Maximum Specimen Weight(Kg)		30	50	100	200	300	600	1000
Max acceleration(G)	half sine	600	600	600	500	500	300	300
	saw-tooth waveform	100	100	100	100	100	100	100
	square	150	150	150	150	100	100	100
Pulse Duration (ms)	half sine	40—0.2	40~1	40~1	30~2	20~3	20~3	20~3
	saw-tooth waveform	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	square		30~6	30~6	30~6	30~6	30~6	30~6
Machine Dimension(cm)		120110245	130140260	130120260	150130260	200160300	230180310	250220310
Controller cabinet Dimension(cm)		W55D50H80
Machine Weight(Kg)		1900	2300	3200	4200	8500	15500	19500
Utility		3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements		3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
